Prac 2 Failing loudly - handling error in clinical screening

By Evelyn Collen

1. Introduction

What happens when we can’t afford to fail - DPYD pharmacogenomic screening

In last week’s practical, we started to get the hang of handling failing scripts and the concept that failure, in general, isn’t a bad thing! Here we are going to focus on how we can best handle errors in diagnostic reporting.

The DPYD gene is responsible for generating the dihydropyrimidine dehydrogenase (DPD) enzyme, which plays a key role in the metabolism of toxic compounds. Deficiency in this enzyme can cause fatal toxicity to fluoropyrimidine chemotherapy treatments (e.g., 5-fluorouracil, capecitabine), which are widely used in the treatment of solid tumour cancers. Variants in the DPYD can impair functionality in the DPD enzyme’s function, categorised into zero, decreased, or normal function.

It’s important to optimise the variant-tailored dosage, as the standard dose that is effective for some people can be fatal for certain variant carriers. Severe toxicity to these drugs occurs in about 10% to 40% of patients, and around 7% of Europeans carry some variant that impairs function. In South Australia, there has unfortunately been a recorded case of patient fatality due to DPD enzyme deficiency and an incorrectly tailored dosage.

alt text

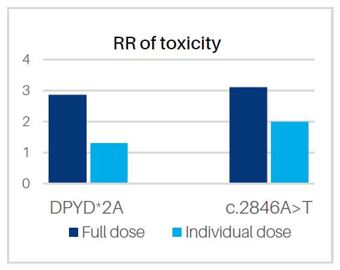

Figure 1. The relative risk of toxicity in those with specified variants when treated with full or individualised dose (taken from Sonic Genetics)

1.1 Reminder about virtual Machines

As usual we will be connecting the virtual machines:

Please go here for instructions on connecting to your VM.

1.2 Learning Outcomes

  1. Understand clinical failure in a clinical bioinformatics and how to minimise it
  2. Learn troubleshooting errors from bioinformatic tools
  3. Learn about how clinical screening results are curated and reported out
  4. Learn about variant reporting in the DPYD gene

1.3 About the dataset

Today we are looking at four patients, who I have anonymised to Patient A, Patient B, Patient C and Patient D. There is a bonus Patient E who has not been reported out, and you will soon find out why.

Patients A,B,C and D have had real diagnostic reports issued out for them, and you can have a look at the anonymised versions here. DPYD patient reports If you have time at the end of the prac or in your spare time, I have put some bonus questions regarding these reports.

2. Errors with sample integrity

2.1 Getting scripts and data ready

Let’s load up our data and scripts!

load software

source activate bioinf
pip install xlsxwriter

create all directories and move into project directory

mkdir -p ~/Practical_Failing_Loudly2/{0_scripts,1_vcfs,2_bam,3_reports,4_refs}
mkdir -p ~/Practical_Failing_Loudly2/1_vcfs/counterpart_vcfs
mkdir -p ~/Practical_Failing_Loudly2/3_reports/{1_fingerprint_check,2_contam_check,3_varcall_check}
cd ~/Practical_Failing_Loudly2

copy scripts and data and also make symlinks

cp ~/data/failing_loudly/0_scripts/* 0_scripts/
ln -s ~/data/failing_loudly/1_vcfs/*.vcf 1_vcfs/
ln -s ~/data/failing_loudly/1_vcfs/*.vcf.gz* 1_vcfs/
ln -s ~/data/failing_loudly/1_vcfs/counterpart_vcfs/*.vcf.gz* 1_vcfs/counterpart_vcfs/
ln -s ~/data/failing_loudly/2_bam/*.bam* 2_bam/
ln -s ~/data/failing_loudly/4_refs/Homo_sapiens_assembly38.fasta 4_refs/Homo_sapiens_assembly38.fasta
ln -s ~/data/failing_loudly/4_refs/HaplotypeMap.vcf 4_refs/HaplotypeMap.vcf
ln -s ~/data/failing_loudly/4_refs/DPYD_variants_genome_location.csv 4_refs/DPYD_variants_genome_location.csv

2.2 Checking a sample’s integrity with genetic fingerprinting

The throughput of NGS samples going through clinical laboratories is really high, and getting higher every year. Some labs are seeing more than 20,000 NGS samples processed each year. With so many samples being manually handled at certain steps, how can we guarantee that no sample has been swapped or contaminated with another?

One way is to separate the sample into two, right at the beginning when the lab first receives the sample. The first part of the sample goes through the normal testing process, and we generate data for it. The counterpart goes through a completely independent workflow, where we target just a handful of common SNPs.

flowchart TD
    A[Sample Received at Lab]

    A --> B[DNA extraction split into two]

    B --> E1[Primary Sample A undergoes sequencing for diagnostic variants]
    B --> E2[Counterpart Sample A undergoes sequencing for fingerprinting SNPs]

    E1 --> F[Check SNPs match with GATK check fingerprint]
    E2 --> F

    F --> G{Fingerprints Match?}

    G -->|Yes| H[Confirm Identity]
    G -->|No| I[Flag Discrepancy / Investigate]

This is just one of many sanity checks we can do, including pedigree check relatedness between family members, population ancestry, etc.

Let’s start by running a fingerprint check for Patient A. The counterpart vcfs are in a separate folder, and have been produced completely indepedently from our diagnostic vcfs (so they won’t have any variants in the DPYD gene). They contain mostly germline SNPs, that occur with faily high frequency (> 5%) in the most common population databases.

Here are the counterpart vcfs:

ls 1_vcfs/counterpart_vcfs/*.gz

Patient_A_counterpart.gatk.hg38.vcf.gz
Patient_B_counterpart.gatk.hg38.vcf.gz
Patient_C_counterpart.gatk.hg38.vcf	.gz
Patient_D_counterpart.gatk.hg38.vcf.gz
Patient_E_counterpart.gatk.hg38.vcf.gz

We’re going to check the concordance of genotypes using GATK. We need two input ref files for the fingerprint command:

ls 4_refs/HaplotypeMap.vcf
ls 4_refs/Homo_sapiens_assembly38.fasta

In the fingerprint checking command below, 4_refs/HaplotypeMap.vcf is provided by the argument –HAPLOTYPE_MAP, while 4_refs/Homo_sapiens_assembly38.fasta is provided to the tool by the argument -R. Let’s run it:

gatk CheckFingerprint -R 4_refs/Homo_sapiens_assembly38.fasta -I 1_vcfs/Patient_A.vcf.gz --GENOTYPES 1_vcfs/counterpart_vcfs/Patient_A_counterpart.gatk.hg38.vcf.gz --HAPLOTYPE_MAP --GENOTYPE_LOD_THRESHOLD 0 --SUMMARY_OUTPUT 3_reports/Patient_A.fingerprint_summary.tsv --DETAIL_OUTPUT 3_reports/Patient_A.fingerprint_detailMetrics.tsv

You should get this output:

Illegal argument value: Positional arguments were provided ',0}' but no positional argument is defined for this tool.
Tool returned:
1

Aha! An error! Lucky for us, we eat errors for breakfast. Notice, the GATK tool hasn’t even said it’s thrown an error - it’s just listed all the required arguments (to nudge you to use the right ones) and told us that we are doing something illegal. It’s also told us the exit code is 1, which is “developer speak” for something is not right.

‘Illegal argument value’ tells us something might be wrong with our arguments or inputs. Can you figure out the issue now that you’ve had some experience digging into errors? Have a careful look at the inputs and give it a go. If you truly get stuck, the right command to run is hidden below.

Fixed_command ```bash gatk CheckFingerprint -R 4_refs/Homo_sapiens_assembly38.fasta -I 1_vcfs/Patient_A.vcf.gz --GENOTYPES 1_vcfs/counterpart_vcfs/Patient_A_counterpart.gatk.hg38.vcf.gz --HAPLOTYPE_MAP 4_refs/HaplotypeMap.vcf --GENOTYPE_LOD_THRESHOLD 0 --SUMMARY_OUTPUT 3_reports/1_fingerprint_check/Patient_A.fingerprint_summary.tsv --DETAIL_OUTPUT 3_reports/1_fingerprint_check/Patient_A.fingerprint_detailMetrics.tsv ```

Well done! If the command worked, you should see in your ouput Patient_A: LOD = 19.548716624813856.

You can also see this number if you look at one of the output files:

cat 3_reports/1_fingerprint_check/Patient_A.fingerprint_summary.tsv

The LOD score, or LL_EXPECTED_SAMPLE (log-likelihood) in the output, is the core metric in this output. It represents the base-10 logarithm of the likelihood that, based on genotype similarity of the SNPs, the counterpart sample is an identical match to the primary sample, versus a random sample. Positive Value: The counterpart sample matches the primary sample (e.g., a LOD of 6 means it is (10^{6}) or 1,000,000 times more likely to be a match than not). Negative Value: The counterpart sample does not match the primary sample, indicating a potential swap or contamination. Near Zero: Inconclusive result, usually due to low coverage or non-informative genotypes

2.3 Checking all samples for integrity

Let’s now run this on all the samples with a simple for loop:


for vcf in 1_vcfs/Patient_*.vcf.gz; do \
sample=$(basename $vcf .vcf.gz); \
gatk CheckFingerprint -R 4_refs/Homo_sapiens_assembly38.fasta -I ${vcf} --GENOTYPES 1_vcfs/counterpart_vcfs/${sample}_counterpart.gatk.hg38.vcf.gz --HAPLOTYPE_MAP 4_refs/HaplotypeMap.vcf --GENOTYPE_LOD_THRESHOLD 0 --SUMMARY_OUTPUT 3_reports/1_fingerprint_check/${sample}.fingerprint_summary.tsv --DETAIL_OUTPUT 3_reports/1_fingerprint_check/${sample}.fingerprint_detailMetrics.tsv; done

You can scroll through the output or have a look at the lod scores:

cat 3_reports/1_fingerprint_check/Patient_*.fingerprint_summary.tsv

You’re looking for the value for the LL_EXPECTED_SAMPLE column, which should be the number at the bottom, fourth from the left.

Questions:

  1. Have all patient samples passed the sample integrity check, based on LOD score?
  2. What is the likelihood that Patient A’s counterpart sample is a true match, versus that it was swapped with another patient’s?
  3. I haven’t mentioned another really common sanity check to interrogate sample integrity. Can you guess what it is?
  4. What would happen to the LOD score of Patient A if the sample swap occured prior to the lab receiving the sample? Would it be negative?
Answers

3. Errors with sample contamination

3.1 Checking for any evidence of contamination

Now that we have verified that all the samples are correctly identified and that no swaps have occured, another thing we can check is whether there is any evidence of low-level contamination. Remember that germline SNPs should usually only ever sit around 1 or 0.5 in frequency, for homozygous and heterozygous SNPs respectively? Well, if you see variants with any VAFs different to this, it could be because there are reads from other patients contaminating the sample and making up the other portion of the allel fraction.

We can check for this, by counting up the number of SNPs in the counterpart vcf that have a vaf less than 0.9, at homozygous alt positions.

python ./0_scripts/check_vaf.py 1_vcfs/counterpart_vcfs/Patient_A_counterpart.gatk.hg38.vcf.gz

The output should show you there is 1 such SNP for Patient A:

Warning: allele frequency for homozygous variant is 0.854, < 0.9
Sample_name	number_homozygous_SNPs_low_VAF	Contamination_status
Patient_A	1	OK

Since there’s only 1, and it’s not too far off from 0.9, we’re not concerned about this and the sample passes. Genetic sequencing data can be noisy, and with real contamination we’d expect more sites to be affected. If there were perhaps more than 3 sites like this, we might start to worry.

Let’s run a for loop on the other patients, and store the outputs:

for vcf in 1_vcfs/counterpart_vcfs/Patient_*_counterpart.gatk.hg38.vcf.gz; \
do a=$(basename $vcf .gatk.hg38.vcf.gz); python ./0_scripts/check_vaf.py $vcf 2>&1 | tee 3_reports/2_contam_check/${a}_contam_check; done

This script classifies sample contamination status as “OK” if the number of low vaf SNPs is < 3.

Question:

  1. Do all the samples pass contamination check?
Answer

4. Errors with variant calling

4.1 Run bcftools as a second variant caller check

No variant caller is perfect, and even the best and more robust programs can make mistakes or have inconsistencies. The caller we used for the DPYD variants was Vardict, which is known to be a very good caller for amplicon data that almost never misses. But even it can have problems - if you’re interested, take a quick glance at one of Vardict’s issue pages on Github:

vardict_calling_issue

As I’ve been emphasising constantly, making the right call is absolutely crucial for the patients, and once we’ve established the sample is the right one, the next crucial step is to ascertain that the right call was made. We can go ahead and double-check it with the aid of a totally different variant caller: bcftools.

Note our inputs for this command:

./2_bam/Patient_A.bam
./4_refs/Homo_sapiens_assembly38.fasta

bcftools mpileup --count-orphans --no-BAQ \
  --max-depth 12345 \
  --min-MQ 10 \
  --skip-indels \
  --annotate AD \
  -f ./4_refs/Homo_sapiens_assembly38.fasta \
  -r chr1:97573863,chr1:97450058,chr1:97515787,chr1:97082391 \
   ./2_bam/Patient_AB.bam \
| bcftools call -c -a GQ \
| bcftools view -e 'GT="0/0"' \
| bcftools +fill-tags -O v -o 3_reports/3_varcall_check/Patient_A_bcftools_check.vcf -- -t FORMAT/VAF

Well well well, do I smell another input error? Have a look at the error message from bcftools. Do you think you can work it out and fix the typo in the above command? If you get stuck, use the command hidden below.

Fixed_command ```bash bcftools mpileup --count-orphans --no-BAQ \ --max-depth 12345 --min-MQ 10 --skip-indels --annotate AD \ -f ./4_refs/Homo_sapiens_assembly38.fasta \ -r chr1:97573863,chr1:97450058,chr1:97515787,chr1:97082391 \ ./2_bam/Patient_A.bam \ | bcftools call -c -a GQ | bcftools view -e 'GT="0/0"' \ | bcftools +fill-tags -O v -o 3_reports/3_varcall_check/Patient_A_bcftools_check.vcf -- -t FORMAT/VAF ```

Great job! Run the following to compare the call made by Vardict to the one we just made with bcftools:

grep 97573863 1_vcfs/Patient_A.vcf
grep 97573863 3_reports/3_varcall_check/Patient_A_bcftools_check.vcf

Did they make the same call?

4.2 Run bcftools for all the samples

for i in ./2_bam/*.bam; do a=$(basename $i .bam); bcftools mpileup --count-orphans --no-BAQ \
  --max-depth 12345 --min-MQ 10 --skip-indels --annotate AD \
  -f ./4_refs/Homo_sapiens_assembly38.fasta \
  -r chr1:97573863,chr1:97450058,chr1:97515787,chr1:97082391 \
   ${i} \
| bcftools call -c -a GQ \
| bcftools view -e 'GT="0/0"' \
| bcftools +fill-tags -O v -o 3_reports/3_varcall_check/${a}_bcftools_check.vcf -- -t FORMAT/VAF; done

You can list the new vcfs you’ve just variant called. Hopefully, they accord with Vardict’s calls, which we’ll find out in the next section:

ll 3_reports/3_varcall_check/*_bcftools_check.vcf

5. Running the full pipeline

5.1 Outputting QC reports to summarise pass/fail

Well done for making it this far! That was quite a lot, and it gets very tedious to check each sample one by one. Let’s finally run our smooth pipeline, which will do all this hard work for us and give us a nice summary file, with pass/fail info for the steps that matter.

cd 0_scripts
bash ./DPYD_mini_pipeline.sh ../1_vcfs/Patient_A.vcf ../1_vcfs/Patient_B.vcf ../1_vcfs/Patient_C.vcf ../1_vcfs/Patient_D.vcf ../1_vcfs/Patient_E.vcf
cd ..

The output should be an excel file with some crisp formatting. Click on it in the right-hand pane, click ‘view file’ to download it, then open it with excel on your desktop.

You can see that we’ve coloured some of the cells green/red based on if they pass/fail some QC thresholds:

FILTER - must be “pass” AF (allele frequecy) - must be 0.35 <= af <= 0.65 or af >= 0.9 DP - must be > 300 variant call second-check - variant must be called by our second caller, bcftools contamination check - counterpart vcf must have no more than 3 low-vaf SNPs fingerprint check - must be positive

5.2 Outputting QC reports to summarise pass/fail

Remember last week when we actively broke some python scripts? You may remember the error message from the validator script was relatively straightforward. What will happen if we run a non-existant vcf through the pipeline?

cd 0_scripts
bash ./DPYD_mini_pipeline.sh ../1_vcfs/patient_1_dody.vcfs
cd ..

Wow, that is a lot of errors in the output. It’s a bit harder to find the issue now, as there are tracebacks stacked on top of each other! But if you comb through it, eventually you should find our ‘Unknown Error’ in the vcf validator script from last week, signalling the input is missing.

Bonus task if time permitting

  1. Take a look at our bash pipeline, “DPYD_mini_pipeline.sh”, with nano. Have a look near the very top where “set -e” is commented.
nano 0_scripts/DPYD_mini_pipeline.sh

Uncomment the set -e on line 4 so it looks like below. This will makes the pipeline immediately exit once it hits an error:

#!/bin/bash

# Exit on error
set -e

Run the command again:

cd 0_scripts
bash ./DPYD_mini_pipeline.sh ../1_vcfs/patient_1_dody.vcfs
cd ..

Would you say that is a bit cleaner output to troubleshoot? We have just made the pipeline exit as soon as it encounters an issue, rather than trying to force on.

Bonus questions about DPYD metabolism:

Depending on the configuration of alleles, and whether those alleles have zero, decreased or normal function, patients will receive a metabolism rating. If you are interested, have a look at how the rating is worked out in this DPYD metabolism rating table

DPYD patient reports

  1. Referring to the DPYD metabolism table, what score would be given to patient who has 1 normal funtion allele and 1 decreased function? Would you classify their phenotype as normal, intermediate or poor?
  2. Referring to the DYPD patient reports, which patient actually has 2 decreased function alleles that are both classified as poor metabolisers? If you had to guess, what dosage would likely be given to this patient?
  3. Hard question - in the reports, the following caveat is given: “For the HapB3 genotype “decreased function” is inferred by detecting the exonic tag SNP (c.1236G>A). Recent studies indicate that in rare cases, the causal decreased function variant c.1129-5923C>G may not be present despite having this tag SNP”. What mechanism could cause the causal variant not be present in a patient, when the tag SNP itself is?
Answers

Concluding remarks

Hopefully through doing this prac, you will see that even when the stakes for not failing are high, being loud about errors is truly the way to go. Perhaps the old adage is true, and failing really is the key to success!
